Acoustic Lighting

Lumina

New Arrival

Register or Login to see our prices.

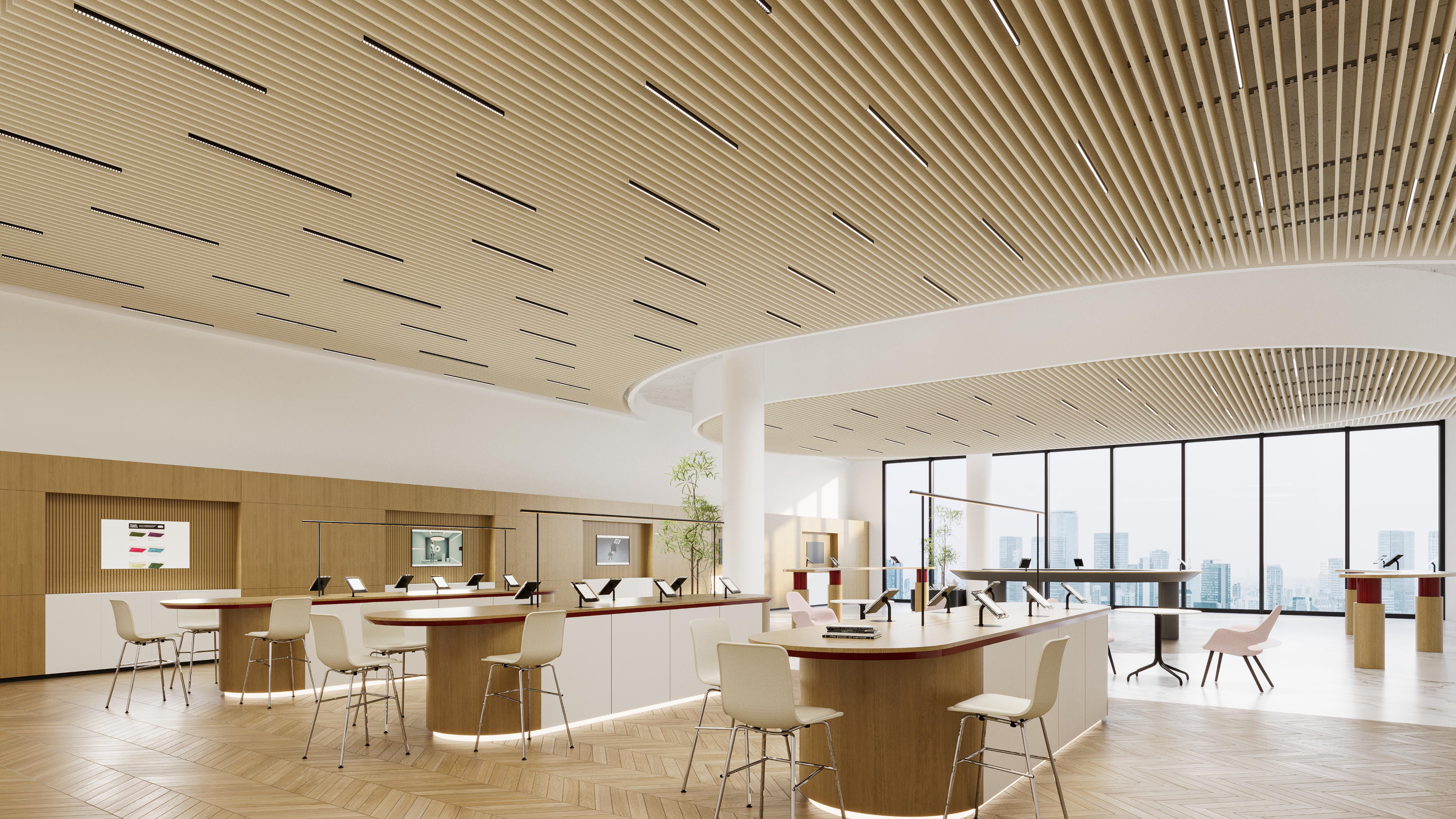

A slender acoustic light introduces a calm, luminous line into the interior, giving the ceiling a sense of direction without heaviness. It is a pared-back way to bring light and material softness into the same architectural layer.

Download Technical Data Sheet

Access comprehensive product specifications, material information and performance data. Everything you need to support your next project.

Download

Technical Specifications

  • Dimensions

    Dimensions

    Bespoke

    Baffle Height

    100 - 300 mm

    Spacing

    100 - 300 mm

    Support Spacing

    max. 1600 mm

    Overhang

    400 mm

    Length Module

    1600 - 2400 mm
  • Lighting Specifications

    Voltage

    230 V

    Wattage

    21.2 W

    Dimming

    DALI

    Beam Angle

    60°

    Diffuser

    Darklight

    Total Lumen Output

    2827 lm

    Colour Temperature (CCT)

    3000K | 4000K, other CCTs on request

    Colour Rendering

    90

    Efficacy

    121 | 133 lm/W

    Driver Location

    On-Board

    Cable Length

    2500

Technical Resources

Technical Files

Technical Documentation, Certificates and Guides available for direct download.

Techical Data Sheets
Product Maintenance

3D Files

3D Files and Advanced Resources available for direct download.

3D Models

Material and Sustainability

102 Shell Pink
